Professional infrared camera irPOD TI390/TI395

High resolution thermal imager with Infrared-/ Video Fusion technic, real time images transfer to PC, LED light, Laser visor, and Voice recording

FLIR – Forward Looking InfraRed – & IR Imaging & Infrared Thermal Imagers by ebs ATuS GmbH

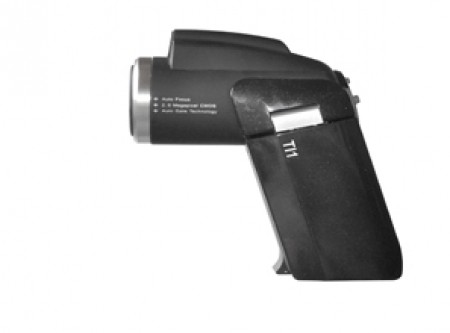

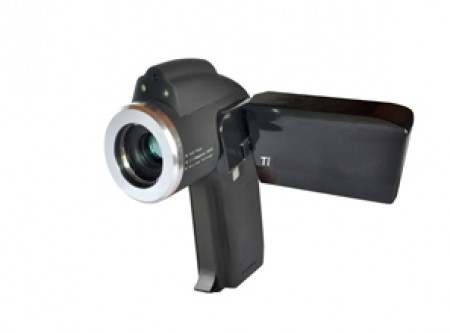

TI390/TI395 is a light weight thermal imager (393g) with semi-wide angle lens, USB Realtime Interface to PC, internal Video Image storage and 6.600 IR-images memory (2GB), multilingual easy using operating environment, Video-/ Audio-output, extreme large flexible color LCD-Display, measurement features as Point-/ Box-/ and Line- function with Hot-/Cold- spot-indicator for over- and under temperature display, dew point detection including Laser pointer for target locating. Temperature extension range up to 1200°C as optional feature. Complete it with Carry Case, Battery, Charger- and Power Supply including IR Measure- & Reporting Software for your PC on CD-ROM


Price on request inkl. MwSt.


Lieferzeit: Standard (22 days)

This reliable irPOD uFPA IR-Thermal Imager TI390/TI395 with 21°x16°/0.15m full automatically or manual focusing standard lens 2.3 mrad (IFOV) provides:

  • Detector resolution (25µm Pitch)
  • IR-sensors:384 x 288 Pixels
  • Temperature measurement range: -20°C up to +250°C
  • (Optional expansion measurement range: up to 1200°C)
  • Thermal resolution (NETD): ~65mK at SN-I 50 Hz and 30°C
  • Thermal accuracy: +/- 2°C oder +/- 2 % of reading

Standard accessories: 2x Li-Ion Batteries, Battery- Charger, USB-cable, Power- supply, Video-/ Audio connecting cable, top-quality carry case, tripod-adaptor including operating manual and Infrared software CD-ROM

Detector Data Detector type – Focal plane array(FPA), uncooled Microbolometer IR resolution -384  x 288 pixels Pixel pitch – 25μm Spectral range – 8-14μm Imaging and Optical Data Field of view (FOV) 1. 21°x 16°/0.15m(standard lens) 2. 38°x 28°/0.15m(wide angle lens,optional) 3. 11° x 8,5° /0.8m (telephoto lens,optional) Spatial resolution (IFOV) – 2.3mrad( standard lens) Thermal sensitivity(NETD) – <65mk at 30℃ Image frequency – 50/60Hz Focus – Manual Electronic zoom – 2x Image Presentation Display Built-in 3.5″ (~8,89cm diag.) color LCD Measurement Temperature range -20℃ to +220℃ up to   600℃ (optional) up to 1200℃ (optional) Accuracy – ±2℃ or ±2% of reading Measurement spot – Up to 4 moveable spots Measurement area – Up to 3 moveable spots, automatically capture maximum minimum, average temperature Line profile – Vertical, horizontal Isotherms analysis – Detect high/low temperature/interval High temperature alarm – Voice, color Emissivity correction – Adjustable from 0.01 to 1.0 Temperature correction – Auto Multiple language menu – 10languages (English, French, Italian, German, Spanlish, Portuguese, Russian, Korean, Japanese, Simplified Chinese and Traditional Chinese) Image Storage Storage type – Built-in flash card, up to 6.600 images(2GB) File formats – Standard JPEG, 14 – bit measurement data included Voice comments – 40s voice record stored with the image via built-in microphone. Laser Indication Classification type – Class 2, 1mW/635nm Red Power System Battery type – Rechargeable and replaceable Li-ion battery Battery operating time – Approx 4 hours Power saving – User defined Power operation – 10-24V DC Environment Data Operating temperature range – -20℃ – +50℃ Storage temperature range – -40℃ – +70℃ Humidity(operating and storage) – ~90%non-condensing Shock test – 25G IEC68-2-29 Vibration – 2G IEC68-2-26 Physical Data Size, L x W x H – 128mm × 62mm × 154mm Weight – 650g Tripod mounting – 1/4"(ca. 6,25mm) Interfaces External DC input – Yes Audio output – Yes Video output – PAL / NTSC PC – USB Realtime Interface to PC Camera Incudes Standard – Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, Video cable, USB cable, Software CD, instruction, warranty card, transport case Optional accessories – Tripod, Li-ion battery, IR lens

Product Sheet

We recommend the Professional infrared camera irPOD TI390/TI395 for the following applications:
