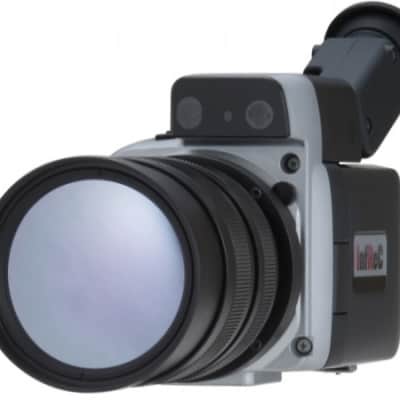

Exclusive thermal imager Avio Thermal Imager R300SR

Extremly high resolution infrared thermal imaging camera as high sophisticated thermography device with Microscopic function up to Panoramic features

(alternative model to FLIR: T420/ T440, FLIR T420bx/ T440bx/ T460/ T660 zu testo: testo 890-1/ 890-2/ 885-1/ 885-2/ 882; zu Fluke: Fluke Ti400/ Ti32; zu Infra Tec/ Jenoptik: VarioCAM ® HD research 900 Serie/ HD inspect 700 Serie/ hr inspect 700 Serie/ hr inspect 600 Serie/ hr research 600 Serie/ hr inspect 500 Serie; zu Trotec: Trotec ICX-Serie ICX640P/ IC-Serie IC080LV/ IC120LV)
FLIR – Forward Looking InfraRed – & IR Imaging & Infrared Thermal Imagers by ebs ATuS GmbH

Super Resolution built-in function over 640 x 480 Pixels Fusion of Infrared image and Integrated high resolution visual camera for IR/Vis Fusion Digital interval storage on internal RT-Memory LED-Light for brighter color photographs The exclusive uncooled uFPA infrared camera provides an outstanding sensor technology, brilliant objectives, large LCD-Display and integrated image analyzing features. Temperature resolution ~0,05K at 30°C and 60Hz (Signal noise improvement ~0,025K) Thermal Accuracy:

  • +/-1°C or +/-1% of reading
  • Several types with individual thermal measurement ranges InfReC R300SR-S: -40°C to 120°C InfReC R300SR: -40°C to 500°C InfReC R300SR-H: -40°C to 2000°C

Complete with Carry Case, Battery, Charger- and Power Supply including IR Measure- & Reporting Software for your PC on CD-ROM


Price on request inkl. MwSt.


Lieferzeit: Standard (22 days)

  The IR-Camera Avio (NEC) Thermal Imager InfReC R300SR provides the following outstanding features:

  • Resolution over 640×480 Pixels by using Super Resolution function of IR-sensor: QVGA x4 for panoramic
  • Integrated high resolution visual camera for IR/Vis Fusion

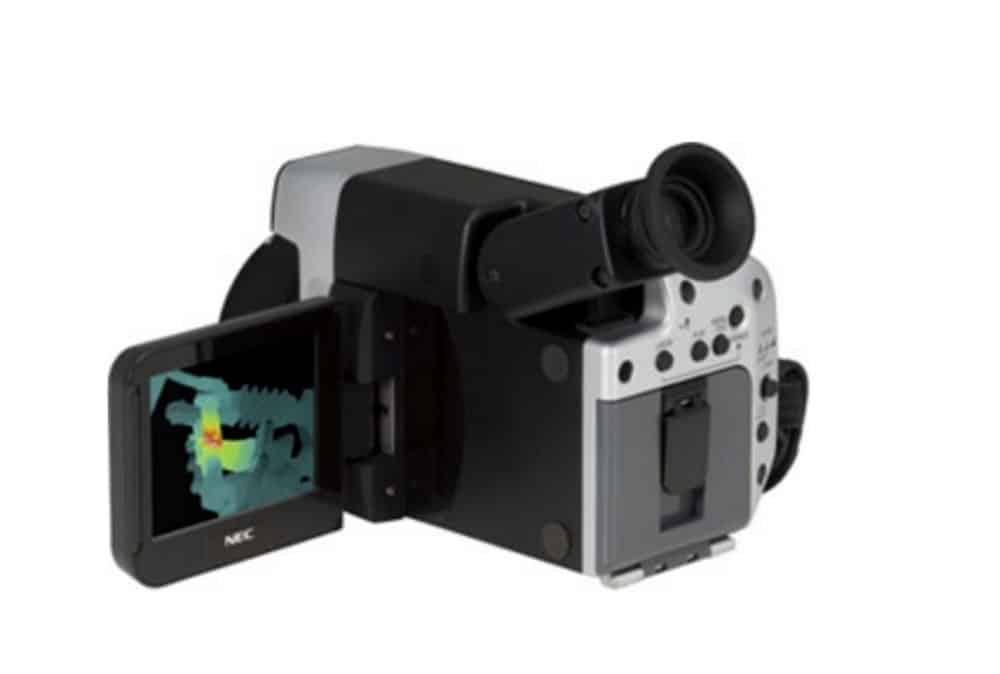

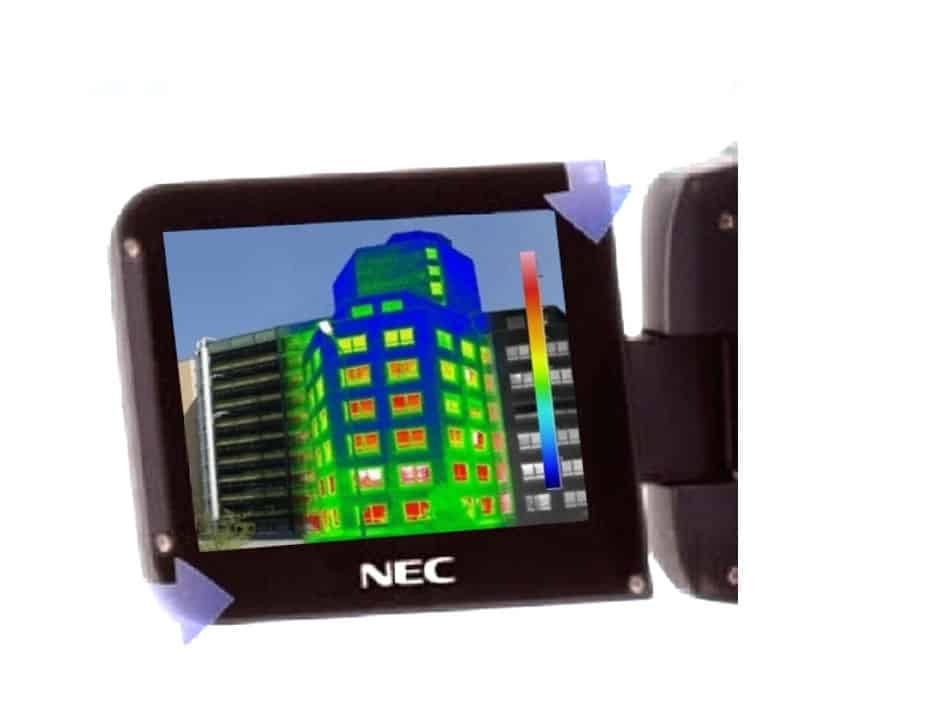

  • Large, flexible LC-Display

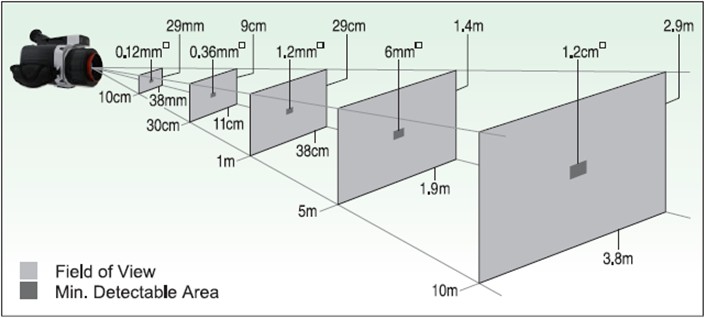

  • I.F.O.V.: 1,2 mrad
  • Auto focussing with manual function
  • USB interface for recording real-time sequences of Infrared and Video with a frequency up to 60 Hz
  • Measurement range from -40°C to 500°C
  • Optional measurement range: up to 2000°C
  • Thermal Resolution: <0,05 K at 60 Hz and 30°C (with S/N improvement ~0,025K)
  • Multilingual user interface
  • Storage device is a standard SD memory card
  • S-Video output for monitoring and recording of video sequences
  • FUSION technology with visual and infrared image
  • Optional Ethernet interface
  • Internal memory for recording of real-time sequences up to 10Hz at 60Hz on sensor side
  • Professional design with metallic chassis
  • Remote control with button keys (as standard accessory)

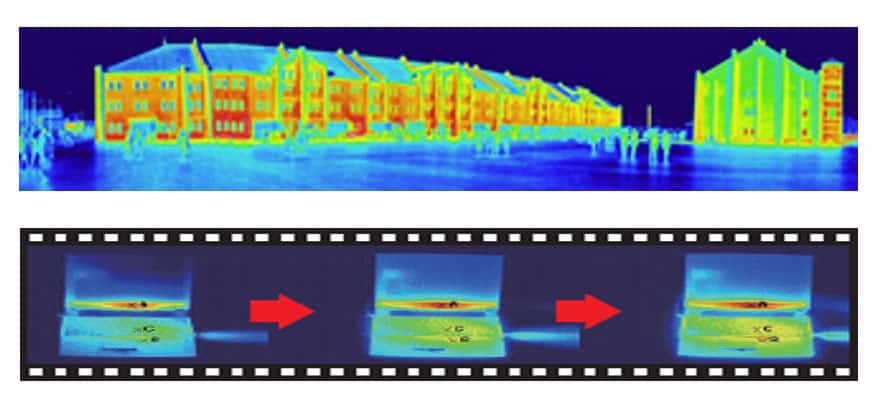

Product Sheet Panorama Fusion IR/Visual Images Specifications

We recommend the Exclusive thermal imager Avio Thermal Imager R300SR for the following applications:

Building ThermographyIndustrial ThermographyPhotovoltaic ThermographyPhotovoltaic ThermographyPreventive MaintenanceResearch & Development
