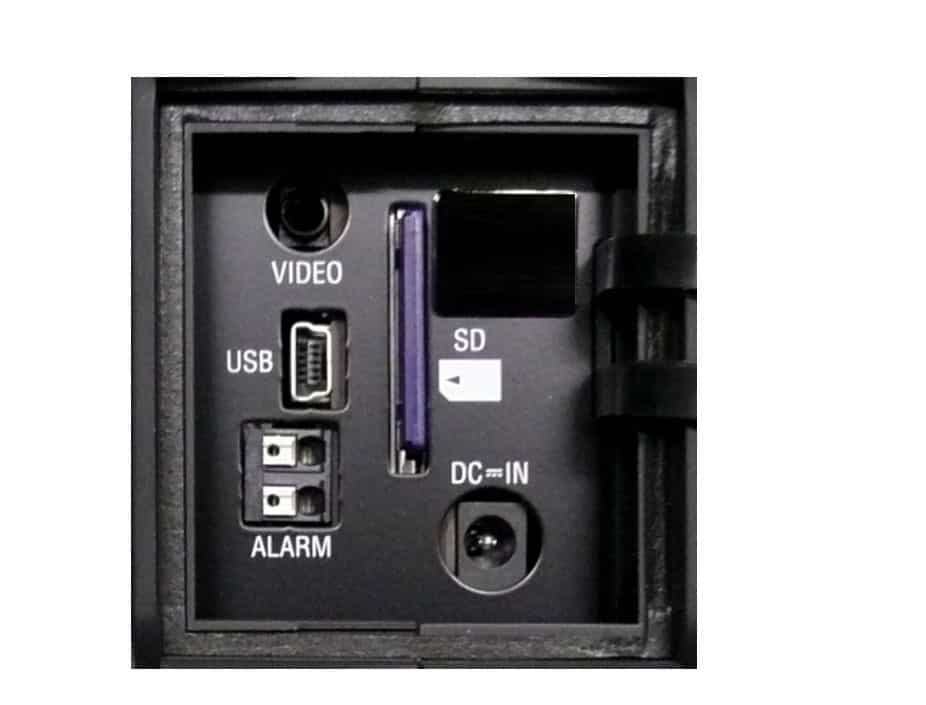

Camera operation with a multilingual user surface, temperature resolution 0,04K SN-I at 30°C, light weight, shock proof (800g) housing with dust & splash water protection (IP54), SD-Memory Card and USB-2 interface for single and interval saving routines of thermo graphic and visual images, interactive user guidance with comfortable camera control-, measurement-, image processing- and analyzing software (emissivity correction), USB-2 interface line image data transmission, built-in battery holder, PAL/NTSC composite video and power supply connector for international compatibility.
Products
Powerful thermal imager Avio Thermo GEAR G100EX
uFPA infrared thermal imaging camera with semi wide angle lens, fully auto focus, voice annunciation, Laser visor, LED-light at 800g low weight
(alternative model to FLIR: FLIR E40/ E50/ E60, FLIR E4/E5/E6/E8, FLIR E40bx/ E50bx/ E60bx/ T420/ T440/ T420bx zu testo: testo 885-1/ 885-2/ 882/ 870-1/ 870-2/ 875-1i/ 875-2i/ 876; zu Fluke: Fluke Ti400/ Ti32; zu Infra Tec/ Jenoptik: VarioCAM ® hr research 400 Serie/ mobileIR E9/ mobileIR M8/ mobileIR M4; zu Trotec: Trotec IC-Serie IC080LV/ IC120LV)
FLIR – Forward Looking InfraRed – & IR Imaging & Infrared Thermal Imagers by ebs ATuS GmbH
Q-VGA QVGA + Full-Autofocus + Voice recording + Laser marker + LED-illuminator + 800 g light weight + 4 h battery operating + Multilingual user surface + Wide angle std. lens + Makro- function + radiometric JPG Image format + SD-Card drive + Alert I/O Interface + Dust-& splashwater protection (IP54)
uFPA Infrared Thermal Imager hand held camera with movable color LCD-Display, large internal Image Memory, selectable Li-Ion long life chargeable battery, integrated Laser-Pointer and Integrated high resolution visual camera for IR/Vis Fusion, geometrical resolution of the IR-Sensor: QVGA
standard measurement range: -40°C to 1.500°C
emimission value- and atmosherical compensation mode
Complete with Carry Case, Battery, Charger- and Power Supply including IR Measure- & Reporting Software for your PC on CD-ROM
Price on request inkl. MwSt.
zzgl. Versandkosten
Lieferzeit: Standard (22 days)
G120EX |
G100EX |
|
Measuring Range | -40°C to 1.500°C | |
Resolution | 0.04K SN-I at 30°C | |
Accuracy | ±2°C or ±2% of reading, whichever is greater | |
Infrared Detector | Un-cooled FocalPlane Array | |
Thermal Image Pixels | 320 (H) x 240 (V)pixels | |
Spectral Range | 8 – 14µm | |
Field of View | 32°(H) x 24°(V)(Standard lens fl – 14mm) | |
Spartial Resolution | 1.78mrad | |
Focusing Range | 10cm to infinity (standard lens) | |
A/D Resolution | 14 bits | |
Automatic Focus | Provided | |
Setting of Level/Sense/Span | Auto / Manual | |
Operation SupportFunction | Setting of item / Each function / Status is displayed by icon | |
Multiple LanguageMenu | 16 Languages (English, Danish, Dutch, Finish, French,German, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Spanish,Swedish, Simplified Chinese and Traditional Chinese) | |
Correcting Functions | Correction for Emissivity, Distance, Environmental Reflection andBackground | |
Averaging and MedianFilter | Provided | |
Edge Enhancement | Provided | No |
Thermal / VisualImage Fusion | Fusion Display of Thermal Image / Visual Image, Parallel Display ofThermal Image / Visual Image | |
Colour Palette | Rainbow, Iris, Brightness, Colour, Hot Iron, Hot Black, Hot White | |
Graduation | 256, 16 and 8 tones | |
Thumbnail Display | 9 image display | |
Digital Zoom | 1 to 4 times | |
Panoramic ShootingFunction | Provided (ScanSynthesis) | No |
MultipointTemperature Display | 5 points | |
MultipointEmissivity Correction | 5 points | |
Emissivity BackCalculation Function | Provided | |
Temperature Difference Between Two Points | Provided | |
Temperature Analysis Function in AssignedRegion | Temperature display of Max / Min / Average in assigned region (5 piecesof BOX) | |
Profile | Horizontal /Vertical | |
Temperature SearchFunction | Searching Max / Min Temperature, automatic display of each position | |
Alarm Function | Mode: Alarm Sound, Alarm Display, Vibration(G120 only), Colour Alarm ON / OFF Setting Determination Temperature, External AlarmOutput | |
Storage Device | SD Card, corresponding to SDHC | |
Thermal Image Movie | Provided (10fps) Storage to SD card | No |
Still Image | JPEG with Temperature data, 14 bits | |
Interval Recording | 3s to 60 min, automatic recording of Thermal Image | |
Event TriggerRecording | Provided | |
USB 2.0 | Mass StorageFunction | |
Alarm Output | Non-voltage ContactOutput | |
Video Output | NTSC / PAL Changeover (Simultaneous use is unable with LCD) | |
Laser Pointer | Provided (Class-2Red colour) | |
Visual Camera | Integrated high resolution visual camera for IR/Vis Fusion | |
LED Light | Provided | |
Voice Annotation | 30 sec Recording / Replay per Image | |
Test Annotation | Read in maximum 256 characters from SD card and attach them on ThermalImage | |

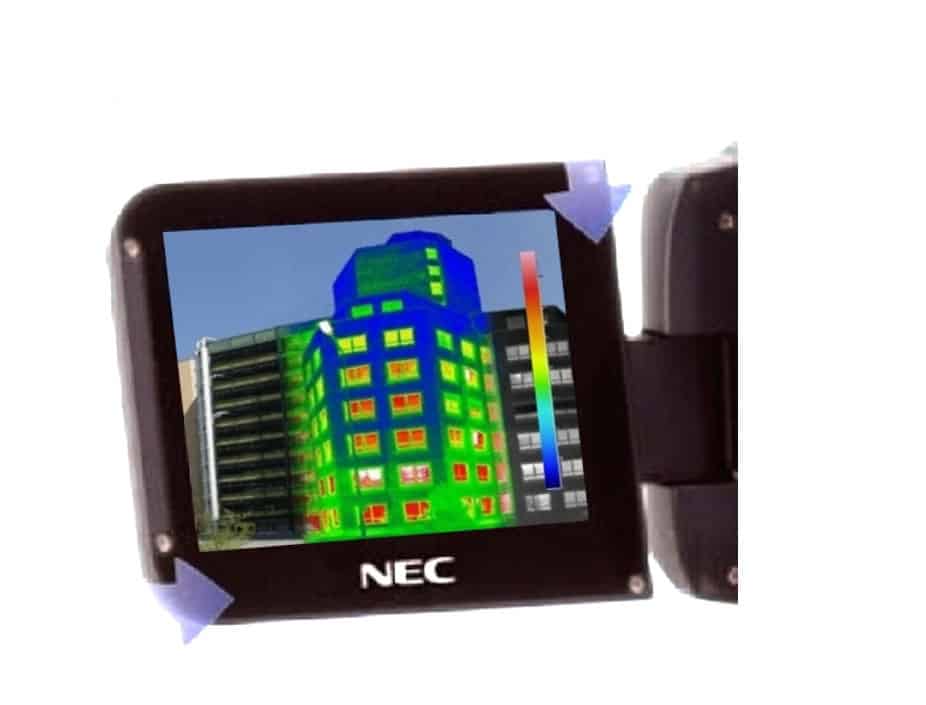

Display Unit | 3.5″ (~8,89cm diag.) Colour LCD Monitor (320 x 240) with Tilt function andbrightness control | |
PC Software | InfReC Analyzer NS9500LT (Limited Function Version) provided as standardaccessory | |
Standard Accessories | Hard Case, Battery Pack, Battery Charger, AC-Adapter, Wristband, Operation Manual | |
Battery | Lithium-ion Battery Pack (2500mAh) Operation Time: 4 hours typical | |
AC Power (ACAdapter) | 100V to 240V AC,50/60 Hz | |
Power Consumption | 4.3W typical | |
OperatingTemperature/Humidity | -15°C to 50°C, 90%RH | |
Vibration/Shock | 29.4m/sec (3G) / 294m/sec (30G) | |
EMC | Compliant to CE (Class-A) | |
Dust-proof / Splash-proof Construction | IP54 Equivalent | |
Dimensions | 138 mm (W) x 212 mm (H) x 76 mm(D) |
We recommend the Powerful thermal imager Avio Thermo GEAR G100EX for the following applications:
Building ThermographyMedical ApplicationsPhotovoltaic ThermographyPhotovoltaic ThermographyPreventive MaintenanceResearch & DevelopmentProduct Enquiry
